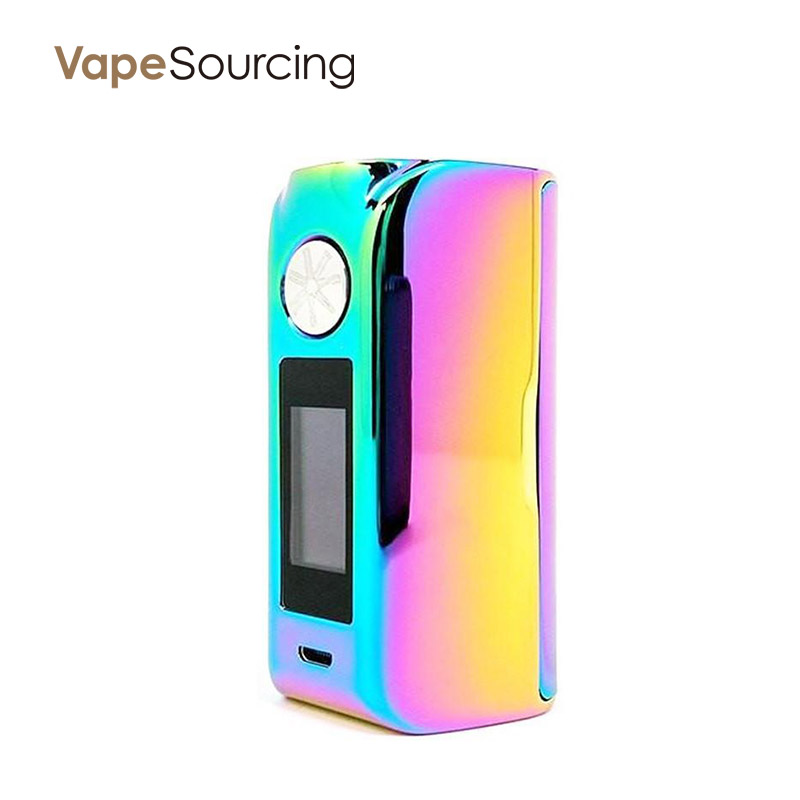

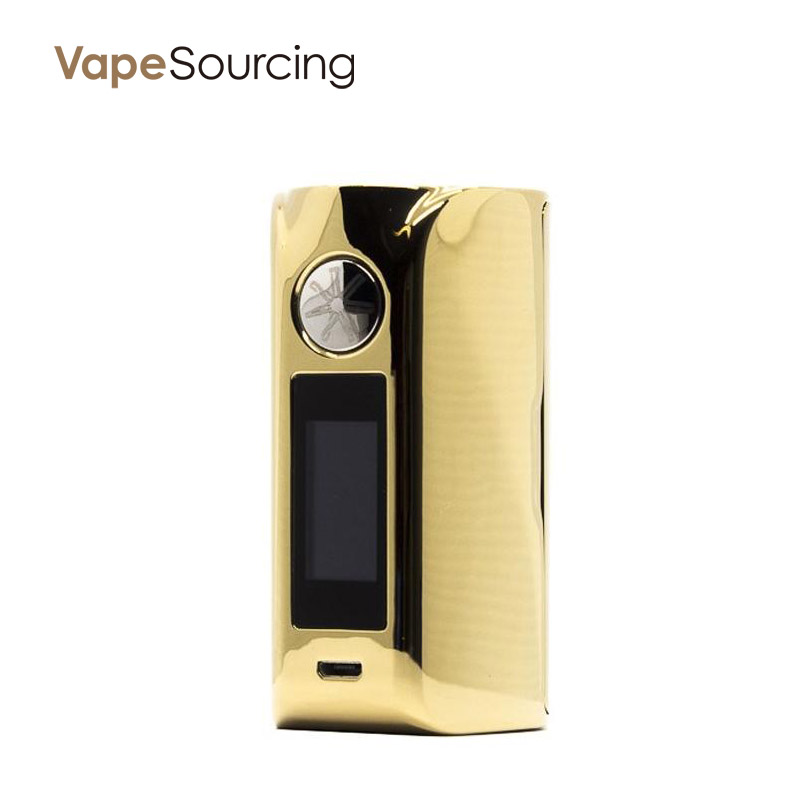

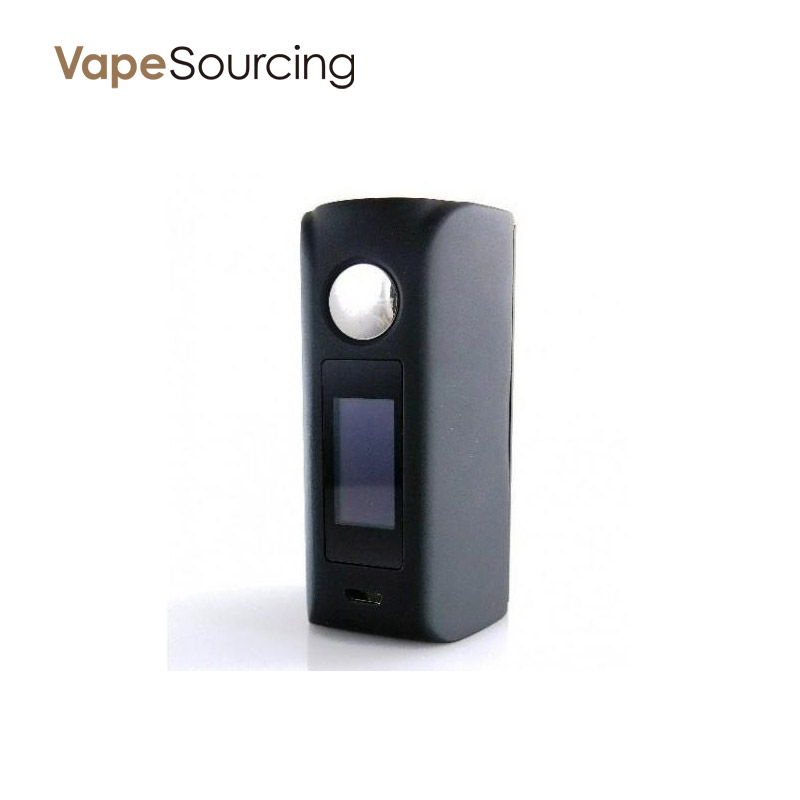

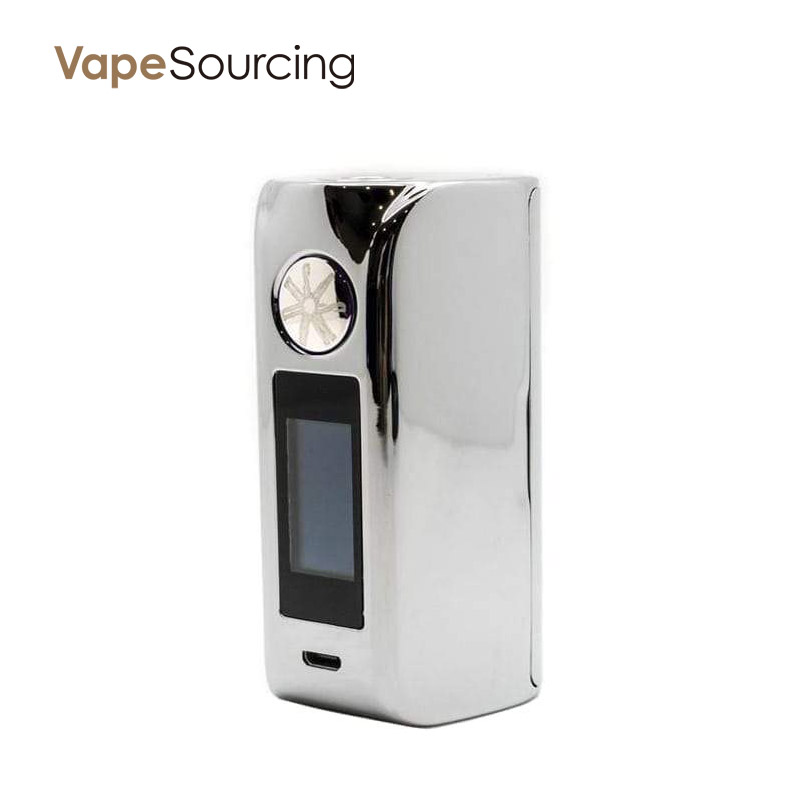

Asmodus Minikin V2 Mod 180W

• Brand: Asmodus
• Unit: set
• Net Weight: 335(g)

The combined shipping cost will be calculated automatically by the system after you choose the shipping destination in the checkout step.

INTRODUCTION

Product introduction

The Minikin is back the all new Minikin V2 mod! Minikin V2 is powered by a GX-180-HT chip with the same battery-saving features as its previous batteries, but offers a new 180-watt watt cap and touch-screen support! The Minikin V2 Mode has an output power of 180 watts proposed by 2 x 18650 batteries (not included). Power from 5 to 120 Watts in Temperature Control with the resistive wires in Ni200, SS316, and Ti. It can equally effectuate the TCR (Co-efficient Temperature of the Coil) (resistance) for the refined CT. In Watts mode, the Minikin V2 Mod has an output power from 5 to 180 Watts. Finally, in Curve mode, this allows you to modulate the power of the box in pre-defined Lap Time, 75W in 0.5 seconds. A real tuning of vape. The Minikin V2 features a compact Touch Screen that measures 1 inch across the display. The Asmodus Minikin V2 device utilizes newly updated firmware which displays the following information on its LED screen: Individual battery charge, the resistance of the atomizers, volts being used to fire at desired wattage, a puff counter, the duration of the fire, and which mode you are in. The Minikin V2 features a redesigned body that was crafted specifically to be comfortable to hold in your hands. A freshly designed magnetic closure door has been added and the USB port has been moved to the front of the device. 15 ventilation holes have been incorporated into the base of the device to allow for maximized heat dissipation.

Parameters

Battery: 2 x 18650 cells (not included)

Chip: GX-180-HT

Touch screen type: 1 Inch Capacitive screen

Wattage range (VW): 5 - 180W

Wattage range (TC Mode): 5 - 120W

Temperature control range: 212° - 572°F / 100°C - 300°C

Atomizer ohm range: 0.1 - 2.5ohm

Max output voltage: 7.5V

Work Efficiency: 95%

Peek output current: 45A

Charging parameters: DC 5V/1A

Port: MicroUSB

Thread: 510

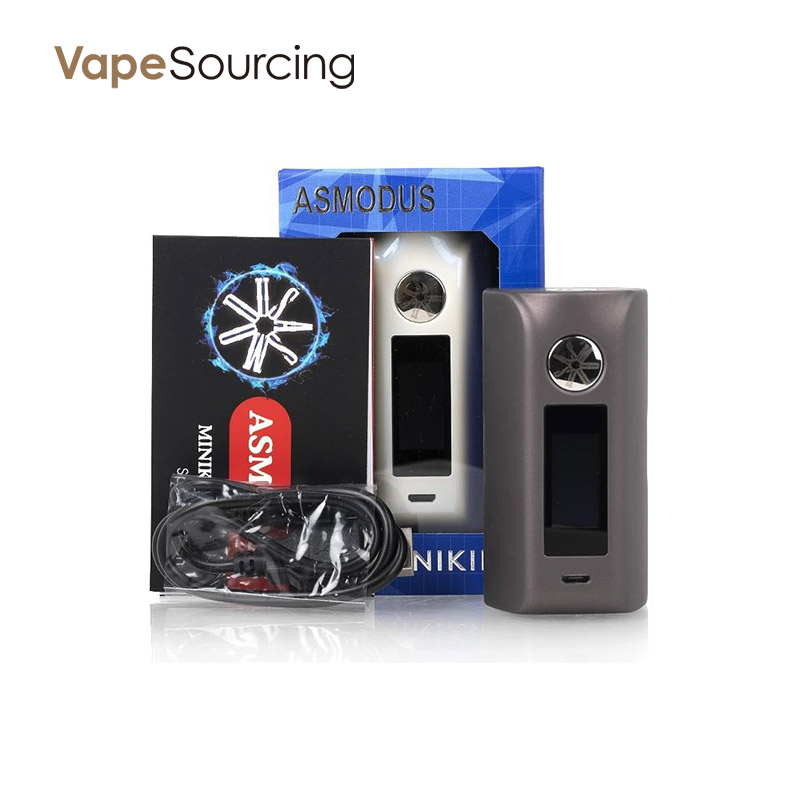

Asmodus Minikin V2 Touch Screen Mod 180W comes with

1x Minikin V2 mod (no cell)

1x USB cable

1x Manual

1x Gift box

SPECIFICATION

Features

• Naturally rounded contour - ergonomic

• Durable soft lacquer finish

• Max 180W with dual 18650 cells

• GX-180-HT Chipset

• 1-inch intuitive capacitive touch screen

• Advanced VW/TC/TCR/TFR modes

• Technology similar to the temperature coefficient of resistance (TCR)

• Resistivity Temperature Coefficient (TFR) function

• Magnetized battery cover

• MicroUSB port and upgradeable firmware

GUARANTEE

3 Months for Battery/ Mod. Atomizer & Accessories are DOA (Dead On Arrival), please contact us within 72 hours of delivery.

ORDERING TIPS

Package

Simple paper box. Customary Packing from the factory, the packing is subject to change without notice.
